Ducting features, Flange, Elbow Flex Hose Adapters for Negative, Positive Air Pressure Applications (small or large spaces, underground shelter, storm shelter, earthquake shelter, tornado shelter, hurricane shelter)

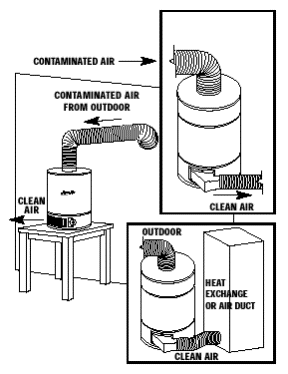

Positive Pressure

• The positive air configuration draws in the indoor air by the top of the unit and blows clean air out by the bottom.
• This system can be used to bring outdoor air through the air cleaner and create positive air pressure in the interior space.
• This pressure forces the contaminated indoor air out and replaces it with cleaned outdoor air.
• The positive air configuration is used in the Air Handler central air systems and may be used to feed clean air into a heat exchanger or air duct.

Negative Pressure

• The negative air configuration draws the contaminated air in through the bottom of the unit and blows it out through the top.
• This system can be used to move contaminated air from indoors to outdoors through the air cleaner and create negative air pressure in the indoor space.
• This pressure draws outdoor air into the interior to replace the extracted contaminated air.
• The air cleaner cleans the contaminated indoor air before releasing it outdoors to avoid creating outdoor pollution and to conform with environmental regulations.

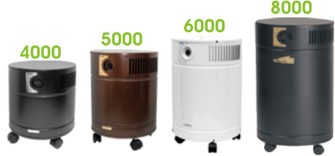

Alternative power: 4000, 5000, 6000, 8000 series can be powered off a power inverter (hooked up to a battery).

Elbow adapter, 6" diameter flex hose,  clean air exhaust side, upside down unit

Elbow adapter, 6" diameter flex hose,  clean air exhaust side, upright unit (with wheels)

Flange adapter, 6" diameter flex hose, air intake side, air drawn from outdoor or adjoining space, filtered, & blown into the indoor room, space.

Customizable Features

Activated Carbon Blend
Exec Blend: Our Exec carbon is our general-purpose blend, ideal for trapping a wide range of airborne chemicals, gases and odors.
Vocarb Blend: Our Vocarb carbon is our boosted blend, offering a more aggressive removal of hard-to-trap airborne chemicals, gases and odors. This blend is best suited for newly renovated environments, unknown contaminants and/or formaldehyde.
Custom Blend: Have an unusual IAQ problem? Let us customize the perfect carbon blend solution!

Filter Depth
A unit�s filter depth is key to its adsorption capacity.
Customize your unit with a 2.5� (regular), 3� (deep or �D�) or 3.5� (extra deep or �DX�) carbon bed filter to maximize its chemical-adsorption efficiency.

Common Features / Specifications
Voltage: 115/60Hz or 230/60Hz - 1.3A
Cord length: 8 feet
Sound level: "Low"/"High"/"Turbo", dB. (5 ft. away): 35/55/65
Maneuverability: 4 x 2" wheels
Filter access: Pre-filter bottom no tools, Main filters bottom with screws
CSA / UL certification

Optional Features

Virus, Mold & Bacteria Protection
Customize your air purifier with a UV light to provide additional protection from viruses, mold and bacteria. Add a photo catalytic reactor to your UV option for the most advanced protection!
